All frames are made to measure.

• Sizes stated should be the overall frame size including any cill and frame extensions (if required).
• All dimensions to be supplied in Metric.
• All frame styles are viewed from outside.
• We do not make any fitting allowances on the sizes you provide. The size you state will be the size we manufacture.

All external cills are 30mm high and will need to be included in the overall height.

85mm stub cill
The stub cill protrudes just 15mm from the external frame.

150mm standard cill
The most common and standard cill size covers most applications. Protrudes 80mm from the external frame.

180mm cill
If your frame is set further back into the brickwork then you may require the oversized cill which protrudes 110mm from the frame.

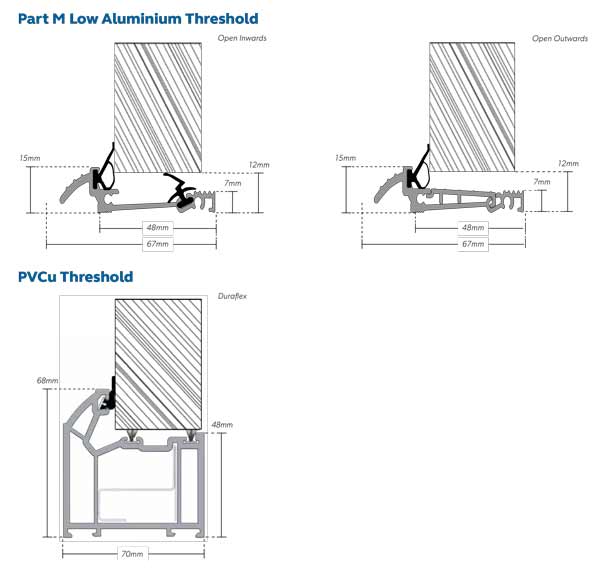

Thresholds.

Frame Extensions/Add On's

A frame extender allows you to increase the thickness of the frame. Useful for properties with deep plaster, render or tiles. 15mm and 30mm extensions are available.

Remember, if you require any extensions, these need to be included in the overall dimensions.

Fixing Screws & Packers

The installation pack includes a selection of universal frame and glazing packers, large 120mm self tapping frame screws (no rawl plugs required) and self tapping cill screws. Fixing screws for extension pieces will also be supplied if required.
